Wall-climbing Robots and Task Modules

Wall-climbing robotic systems for a wide range of inspection and maintenance applications.

EV-2 model

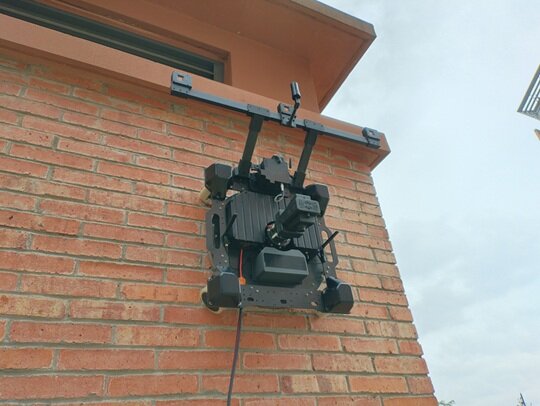

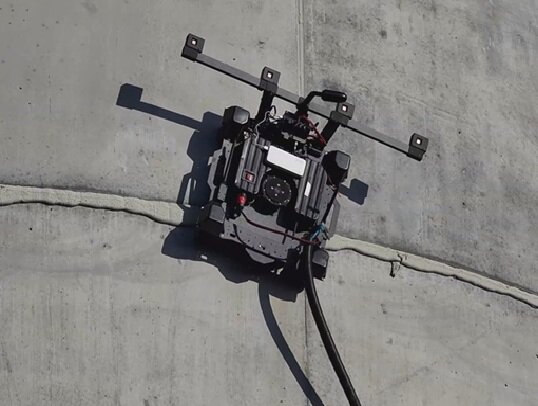

EV-2 model view 1EV-2 model view 2EV-2 model view 3

EV-2 model

Lightweight, low-power consumption, agile and fast.

Weight
Approx. 6.5 kg
Maximum Payload
2 kg
Rated Power
800 W
Dimensions (L x W x H)
500×450×230 mm
Travel Speed
0-0.3 m/s
Obstacle Negotiation
Raised obstacles up to 10 mm

Core Features

  • Negative-pressure adhesion for reliable operation on rough and uneven surfaces.
  • Supports curved and zigzag paths for agile movement.
  • Lightweight and portable design.
  • Package includes the wall-climbing robot body, front & rear-view camera module, high-brightness tablet, remote controller, long-range high-speed signal base station, power supply case and safety rope.
EV-4 model
EV-4 model view 1EV-4 model view 2EV-4 model view 3

EV-4 model

All module compatibility, high payload capacity, large platform.

Weight
Approx. 13 kg
Maximum Payload
4 kg
Rated Power
1500 W
Dimensions (L x W x H)
780 x 850 x 250
Travel Speed
0-0.3 m/s
Obstacle Negotiation
Raised obstacles up to 10 mm

Core Features

  • Negative-pressure adhesion for reliable operation on rough and uneven surfaces.
  • Supports curved and zigzag paths for agile movement.
  • High payload capacity for heavier task modules.
  • Package includes the wall-climbing robot body, 360°-view camera module, high-brightness tablet, remote controller, long-range high-speed signal base station, power supply case and safety rope.
Task Modules

Task Modules

Task modules support surface inspection, internal defect detection and surface maintenance.

Multi-camera close-range imaging for high-resolution, efficient surface inspection.
High-Resolution Surface Imaging Module
Multi-hammer, multi-point tapping for detecting hollow areas behind tiled surfaces.
Impact Tapping Module
High-pressure water jet for removing stubborn surface stains.
High-Pressure Water Cleaning Module
Air-spray coating with an integrated 500 mL paint container.
Spray Coating Module
Rotary grinding with interchangeable grinding heads.
Grinding Module

Need a Customised Solution?

We offer customised wall-climbing robots and task modules tailored to your specific application requirements.
